Spades and Ring Spacers
Spades and Ring Spacers
A Spades and Ring Spacers is a tool that is extensively used in joining pipes. A well-known, effective and reliable joining method for tubes and pipes, it is used in multiple commercial and business sectors where long tubes/pipes have to be connected. Whether it is construction, drilling, sewerage, or any other field, Spades and Ring Spacers are used in pipes when joints need to be dismantled, inspected or adjusted. It is used so that the pipes can be disassembled in future for maintenance and to fix blockages or leaks if they take place in the pipe. A Spades and Ring Spacers is a very important part of pipes and tubes and has been in use for years. However, with time, it has undergone several changes. Today, Spades and Ring Spacers are available in different designs with improved functionality.
One can find Spades and Ring Spacers, socket-weld flanges, lap joint flanges, slip-on flanges, blind flanges, weld neck flanges, and more in the market. These Spades and Ring Spacers have their own specialty and make joining pipes a cakewalk with their smooth and hassle-free technique. For example, lap joint flanges are used where space is scarce and dismantling is required more often while Spades and Ring Spacers are utilized in process piping where piping is done under high pressure and high-temperature conditions.
FLANGE PRODUCTS
Why buy Spades and Ring Spacers from Rexal Tubes?
Industries across the board need these Spades and Ring Spacers for their industrial operations and Rexal Tubes offers the best and most diverse Spades and Ring Spacers to serve the different requirements. We have been supplying pipes, tubes and Spades and Ring Spacers to clients across the globe for fifteen years. Our premium quality Spades and Ring Spacersmade of carbon steel, alloy steel, low-temperature steel and high-temperature steel have powered pipes in different industries and work as the ultimate joints in thousands of locations under diverse circumstances. Strong, sturdy, durable and cost-effective, our Spades and Ring Spacers have it in them to work under tough conditions and this is made possible by modern manufacturing process that we follow at our plants.
Our equipment and tools are first-rate and we procure them after extensive research and inspection from well-known suppliers. The same applies to the raw material. The methods applied in production are also the best in the industry and most importantly, we follow the quality-control standards strictly. Every step is taken to make sure that the Spades and Ring Spacers adhere to the norms prescribed by the national and international regulatory bodies. We always keep ourselves up-to-date with the latest developments and give special emphasis on innovation so that the customers get novel offerings and we are at the forefront of the market. We also feel that it is our responsibility to ensure that the delivery reaches the different locations safely and on time.
Spades and Ring Spacers Applications
The Spades and Ring Spacers procured from Rexal Tubes are applied in tubes and pipes in numerous industries. They are an integral part of the pipeline system in diverse fields such as petroleum, water, oil & gas, pharmaceuticals, desalination, dairy & food processing, refinery & petrochemicals,breweries, and others. The Spades and Ring Spacers are applied to connect pipes, pumps, valves, and other equipment to create a piping system. The advantage with Spades and Ring Spacers is that they offer a lot of flexibility. They are detachable and hence, can be removed and fixed again after inspection or adjustment.
Flexibility is the prime feature of Spades and Ring Spacers and it works in different fields because piping systems have different requirements and need flexible setting. Also, some pipe systems are quite long and cannot be installed and maintained without the help of Spades and Ring Spacers. So, Spades and Ring Spacers have become a part and parcel of the pipes/tubes system and since they are available in different dimensions and specifications, it is completely possible to meet the unique industrial requirements.
Spades and Ring Spacers Description
Ring spacers
Ring spacers are bored to the matching pipe ID and are the same thickness as the “single blind” that it replaces. When removing a “single blind”, either the flanges and associated piping must be pulled together to seal the line, or a “ring spacer” must be installed to fill the gap. Thick single blinds or rigid piping systems normally require ring spacers.
Spectacle Blind
A spec blind is a combination of a ring spacer and single blind. They are usually permanently installed in a piping system and rotated as needed.

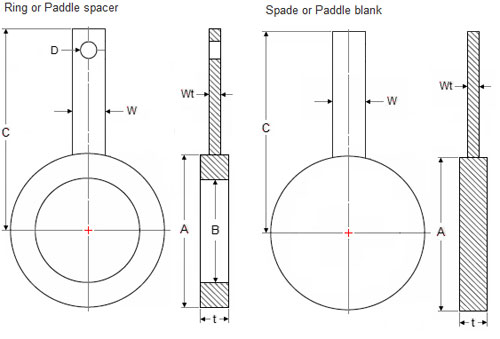

Spades and Ring Spacers Dimensions & Tolerances
Class 150
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 45 | 16 | 126 | 3 | 32 |
3/4 | 54 | 21 | 131 | 3 | 32 |
1 | 64 | 27 | 136 | 3 | 32 |
1¼ | 73 | 42 | 145 | 6.4 | 32 |
1½ | 83 | 48 | 145 | 6.4 | 32 |
2 | 102 | 61 | 155 | 6.4 | 32 |
2½ | 107 | 73 | 170 | 6.4 | 32 |
3 | 133 | 89 | 170 | 6.4 | 32 |
3½ | 159 | 102 | 202 | 9.7 | 38 |
4 | 172 | 114 | 202 | 9.7 | 38 |
5 | 194 | 141 | 225 | 9.7 | 38 |
6 | 219 | 168 | 225 | 12.7 | 38 |
8 | 276 | 219 | 267 | 12.7 | 38 |
10 | 337 | 273 | 322 | 15.7 | 44 |
12 | 406 | 324 | 357 | 19.1 | 44 |
14 | 448 | 356 | 378 | 19.1 | 44 |
16 | 511 | 406 | 410 | 22.4 | 44 |
18 | 546 | 457 | 427 | 25.4 | 51 |
20 | 603 | 508 | 455 | 28.4 | 51 |
24 | 714 | 610 | 512 | 31.8 | 51 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Class 300
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 51 | 16 | 129 | 6.4 | 32 |
3/4 | 64 | 21 | 136 | 6.4 | 32 |
1 | 70 | 27 | 139 | 6.4 | 32 |
1¼ | 79 | 42 | 150 | 6.4 | 32 |
1½ | 92 | 48 | 150 | 6.4 | 32 |
2 | 108 | 61 | 158 | 9.7 | 32 |
2½ | 127 | 73 | 177 | 9.7 | 32 |
3 | 146 | 89 | 177 | 9.7 | 32 |
3½ | 162 | 102 | 205 | 12.7 | 38 |
4 | 178 | 114 | 205 | 12.7 | 38 |
5 | 213 | 141 | 240 | 15.7 | 38 |
6 | 248 | 168 | 240 | 15.7 | 38 |
8 | 305 | 219 | 281 | 22.4 | 38 |
10 | 359 | 273 | 333 | 25.4 | 44 |
12 | 419 | 324 | 363 | 28.4 | 44 |
14 | 483 | 356 | 395 | 31.8 | 44 |
16 | 536 | 406 | 422 | 38.1 | 44 |
18 | 594 | 457 | 450 | 41.1 | 51 |
20 | 651 | 508 | 480 | 44.5 | 51 |
24 | 772 | 610 | 540 | 50.8 | 51 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Class 600
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 51 | 16 | 129 | 6.4 | 32 |
3/4 | 64 | 21 | 136 | 6.4 | 32 |
1 | 70 | 27 | 139 | 6.4 | 32 |
1¼ | 79 | 37 | 150 | 9.7 | 32 |
1½ | 92 | 43 | 150 | 9.7 | 32 |
2 | 108 | 55 | 158 | 9.7 | 32 |
2½ | 127 | 67 | 177 | 12.7 | 32 |
3 | 146 | 83 | 177 | 12.7 | 32 |
3½ | 159 | 96 | 211 | 15.7 | 38 |
4 | 191 | 108 | 211 | 15.7 | 38 |
5 | 238 | 135 | 248 | 19.1 | 38 |
6 | 264 | 162 | 248 | 22.4 | 38 |
8 | 318 | 212 | 288 | 28.4 | 38 |
10 | 397 | 265 | 352 | 35.1 | 44 |
12 | 454 | 315 | 381 | 41.1 | 44 |
14 | 489 | 346 | 398 | 44.5 | 44 |
16 | 562 | 397 | 435 | 50.8 | 44 |
18 | 610 | 448 | 459 | 53.8 | 51 |
20 | 679 | 497 | 493 | 63.5 | 51 |
24 | 787 | 597 | 547 | 73.2 | 51 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Class 900
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 60 | 16 | 134 | 6.4 | 32 |
3/4 | 67 | 21 | 137 | 6.4 | 32 |
1 | 76 | 27 | 142 | 6.4 | 32 |
1¼ | 86 | 37 | 151 | 9.7 | 32 |
1½ | 95 | 43 | 151 | 9.7 | 32 |
2 | 140 | 55 | 174 | 12.7 | 32 |
2½ | 162 | 67 | 186 | 12.7 | 32 |
3 | 165 | 83 | 186 | 15.7 | 32 |
4 | 203 | 108 | 217 | 19.1 | 38 |
5 | 244 | 135 | 259 | 22.4 | 38 |
6 | 286 | 162 | 259 | 25.4 | 38 |
8 | 356 | 212 | 307 | 35.1 | 38 |
10 | 432 | 265 | 370 | 41.1 | 44 |
12 | 495 | 315 | 401 | 47.8 | 44 |
14 | 518 | 346 | 412 | 53.8 | 44 |
16 | 572 | 397 | 440 | 60.5 | 44 |
18 | 635 | 448 | 471 | 66.5 | 51 |
20 | 696 | 497 | 501 | 73.2 | 51 |
24 | 835 | 597 | 571 | 88.9 | 51 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Class 1500
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 61 | 16 | 135 | 6.4 | 32 |
3/4 | 67 | 21 | 137 | 9.7 | 32 |
1 | 76 | 27 | 142 | 9.7 | 32 |
1¼ | 86 | 35 | 151 | 9.7 | 32 |
1½ | 95 | 41 | 151 | 12.7 | 32 |
2 | 140 | 53 | 174 | 12.7 | 32 |
2½ | 162 | 63 | 190 | 15.7 | 32 |
3 | 172 | 78 | 190 | 19.1 | 32 |
4 | 206 | 102 | 219 | 22.4 | 38 |
5 | 251 | 128 | 256 | 28.4 | 38 |
6 | 279 | 154 | 256 | 35.1 | 38 |
8 | 349 | 203 | 303 | 41.1 | 38 |
10 | 432 | 255 | 370 | 50.8 | 44 |
12 | 518 | 303 | 412 | 60.5 | 44 |
14 | 575 | 333 | 442 | 66.5 | 44 |
16 | 638 | 381 | 472 | 76.2 | 44 |
18 | 702 | 429 | 504 | 85.9 | 51 |
20 | 752 | 478 | 530 | 95.3 | 51 |
24 | 899 | 575 | 603 | 111.3 | 51 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Class 2500
NPS | OUTSIDE Ø A |
INSIDE Ø B |
CENTER TO END C |
THICKNESS T |
HANDLE WIDTH W |
---|---|---|---|---|---|
1/2 | 67 | 16 | 137 | 9.7 | 32 |
3/4 | 73 | 21 | 140 | 9.7 | 32 |
1 | 83 | 27 | 145 | 9.7 | 32 |
1¼ | 102 | 35 | 161 | 12.7 | 32 |
1½ | 114 | 41 | 161 | 15.7 | 32 |
2 | 143 | 53 | 175 | 15.7 | 32 |
2½ | 165 | 63 | 201 | 19.1 | 32 |
3 | 194 | 78 | 201 | 22.4 | 32 |
4 | 232 | 102 | 232 | 28.4 | 38 |
5 | 276 | 128 | 273 | 35.1 | 38 |
6 | 314 | 154 | 273 | 41.1 | 38 |
8 | 384 | 198 | 321 | 53.8 | 38 |
10 | 473 | 248 | 390 | 66.5 | 44 |
12 | 546 | 289 | 427 | 79.2 | 44 |
NPS | Outside Ø A |
Inside Ø B |
Center to End C |
Thickness t |
Handle Width W |
Notes:
Dimensions are in millimeters unless otherwise indicated.
Spade Handles shall be solid with no openings.
Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
Spades & Ring Spacers according to ASME B16.48 may be used for installation between ASME B16.5 flanges
Depending on a customer specification, some dimensions can be different from what on this page is defined.
