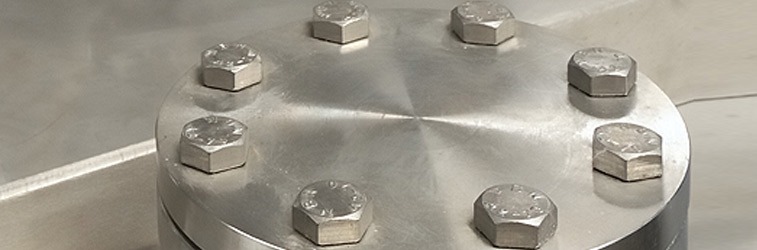

ANSI B16.47 900lb Blind Flanges

ANSI B16.47 900lb Blind Flanges

ANSI B16.47 900lb Blind Flanges

A ANSI B16.47 900lb Blind Flanges is a tool that is extensively used in joining pipes. A well-known, effective and reliable joining method for tubes and pipes, it is used in multiple commercial and business sectors where long tubes/pipes have to be connected. Whether it is construction, drilling, sewerage, or any other field, flanges are used in pipes when joints need to be dismantled, inspected or adjusted. It is used so that the pipes can be disassembled in future for maintenance and to fix blockages or leaks if they take place in the pipe. A ANSI B16.47 900lb Blind Flanges is a very important part of pipes and tubes and has been in use for years. However, with time, it has undergone several changes. Today, flanges are available in different designs with improved functionality.

One can find threaded flanges, socket-weld flanges, lap joint flanges, slip-on flanges, blind flanges, weld neck flanges, and more in the market. These ANSI B16.47 900lb Blind Flanges have their own specialty and make joining pipes a cakewalk with their smooth and hassle-free technique. For example, lap joint flanges are used where space is scarce and dismantling is required more often while weld neck flanges are utilized in process piping where piping is done under high pressure and high-temperature conditions.

FLANGE PRODUCTS

Spades and Ring Spacers

Square Flanges

Special Flanges

Flanges Faces

RELATED PRODUCTS

Nickel Pipes and Tubes

ISO 3183 Pipe

Why buy ANSI B16.47 900lb Blind Flanges from Rexal Tubes?

Industries across the board need these ANSI B16.47 900lb Blind Flanges for their industrial operations and Rexal Tubes offers the best and most diverse ANSI B16.47 900lb Blind Flanges to serve the different requirements. We have been supplying pipes, tubes and ANSI B16.47 900lb Blind Flanges to clients across the globe for fifteen years. Our premium quality flanges made of carbon steel, alloy steel, low temperature steel and high temperature steel have powered pipes in different industries and work as the ultimate joints in thousands of locations under diverse circumstances. Strong, sturdy, durable and cost-effective, our flanges have it in them to work under tough conditions and this is made possible by modern manufacturing process that we follow at our plants.

Our equipment and tools are first-rate and we procure them after extensive research and inspection from well-known suppliers. The same applies to the raw material. The methods applied in production are also the best in the industry and most importantly, we follow the quality-control standards strictly. Every step is taken to make sure that the ANSI B16.47 900lb Blind Flanges adhere to the norms prescribed by the national and international regulatory bodies. We always keep ourselves up-to-date with the latest developments and give special emphasis on innovation so that the customers get novel offerings and we are at the forefront of the market. We also feel that it is our responsibility to ensure that the delivery reaches the different locations safely and on time.

ANSI B16.47 900lb Blind Flanges Applications

The ANSI B16.47 900lb Blind Flanges procured from Rexal Tubes are applied in tubes and pipes in numerous industries. They are an integral part of the pipeline system in diverse fields such as petroleum, water, oil & gas, pharmaceuticals, desalination, dairy & food processing, refinery & petrochemicals,breweries, and others. The flanges are applied to connect pipes, pumps, valves, and other equipment to create a piping system. The advantage with flanges is that they offer a lot of flexibility. They are detachable and hence, can be removed and fixed again after inspection or adjustment.

Flexibility is the prime feature of ANSI B16.47 900lb Blind Flanges and it works in different fields because piping systems have different requirements and need flexible setting. Also, some pipe systems are quite long and cannot be installed and maintained without the help of ANSI B16.47 900lb Blind Flanges. So, flanges have become a part and parcel of the pipes/tubes system and since they are available in different dimensions and specifications, it is completely possible to meet the unique industrial requirements.

ANSI B16.47 900lb Blind Flanges Dimensions & Weight

PIPE NORMAL DIAM.	O.D. OF FLANGES	THICKNESS	RAISED FACE DIAM.	DIAM. OF BOLT CIRCLE	NO. OF BOLT HOLES	DIAM. OF BOLT HOLES	DIAM. OF BOLT	FILLET RADIUS MIN.
inch	O	C	R	BD	BN	BH	DB	r1
26″	1085.9	139.7	749.3	952.5	20	73.2	2 3/4	11.2
28″	1168.4	142.7	800.1	1022.4	20	79.2	3	12.7
30″	1231.9	149.4	857.3	1085.9	20	79.2	3	12.7
32″	1314.5	158.8	914.4	1155.7	20	85.9	3 1/4	12.7
34″	1397	165.1	965.2	1225.6	20	91.9	3 1/2	14.2
36″	1460.5	171.5	1022.4	1289.1	20	91.9	3 1/2	14.2
38″	1460.5	190.5	1098.6	1289.1	20	91.9	3 1/2	19.1
40″	1511.3	196.9	1162.1	1339.9	24	91.9	3 1/2	20.6
42″	1562.1	206.2	1212.9	1390.7	24	91.9	3 1/2	20.6
44″	1648	214.4	1270	1463.5	24	98.6	3 3/4	22.4
46″	1733.6	225.6	1333.5	1536.7	24	104.6	4	22.4
48″	1784.4	233.4	1384.3	1587.5	24	104.6	4	23.9
50″	To be specified by customer.
52″
54″
56″
58″
60″
