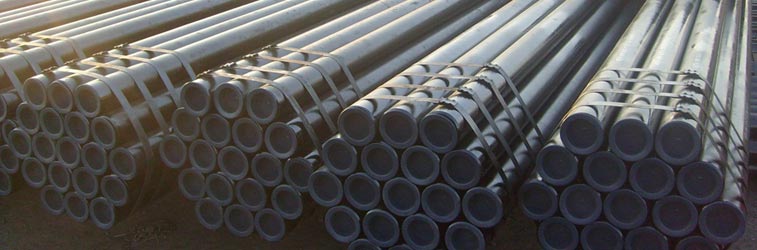

Carbon Steel Pipe To ASTM A 333 Gr 1 pipes
Carbon Steel Pipe To ASTM A 333 Gr 1 pipes
Carbon Steel Pipe To ASTM A 333 Gr 1 pipes
Over the past few decades, steel has emerged as one of the most reliable and useful materials for industries across the spectrum. It is used in different fields such as construction, manufacturing, and mining, and there is a huge demand for steel from all these industries to serve different mechanical purposes. Steel is used as a raw material to manufacture different products but there is one steel product that is used in different industries to execute different operations, which is a steel pipe. A much-relied and effective steel product, it is available in different forms and there are numerous variants of Carbon Steel Pipe To ASTM A 333 Gr 1 pipes that have made industrial operations smoother and more efficient.
Carbon Steel Pipe To ASTM A 333 Gr 1 pipes is one such variant that serves different piping requirements in different industries and has proven its worth through its substantial quality and ability to be used in multiple applications. For a consumer, it is easy to spot and distinguish Carbon Steel Pipe To ASTM A 333 Gr 1 pipes as it has a dull appearance similar to a matte finish. It looks like a cast iron pot and is not shiny. As for the composition, Carbon Steel Pipe To ASTM A 333 Gr 1 pipes is made of iron and carbon but it has more of carbon content and this higher carbon content gives it unique characteristics, which includes more malleability and durability. It also gets a lower melting point and better heat distribution. All these features make Carbon Steel Pipe To ASTM A 333 Gr 1 pipes highly useful for manufacturing pipes and tubes that are put to different uses like transmission, drilling, supply and the like.
Carbon Steel Seamless
Pipe PRODUCTS
Why purchase Carbon Steel Pipe To ASTM A 333 Gr 1 pipes from Rexal Tubes?
Rexal Tubes is an established name in the field of Carbon Steel Pipe To ASTM A 333 Gr 1 pipes and has been catering to the steel market for fifteen long years. The wide range of Carbon Steel Pipe To ASTM A 333 Gr 1 pipes supplied by the manufacturer has served customers with great efficacy not just in India but abroad as well. Businesses dealing in petroleum, water, oil & gas and other industries have been using the high-quality pipes and tubes of Rexal Tubes for a very long duration and they rely on the company with utmost faith. Their trust has earned the company a distinguished credibility which only gets fortified with its diverse and excellent supplies which serve regular, complex as well as emergency requirements of clients precisely.
Whether it is carbon steel ERW pipes or seamless pipes, Rexal Tubes offers the best in terms of quality and variety. The tubes and pipes are available in different sizes, shapes, thickness, diameter and other dimensions. There is also provision for after sale services. Most importantly, the Carbon Steel Pipe To ASTM A 333 Gr 1 pipes are flexible and open to being customized and so, a customer does not need to worry if they have a unique requirement. They can rest assured that they will be served the best Carbon Steel Pipe To ASTM A 333 Gr 1 pipes in every segment and the offering would prove to be value for money under all circumstances.
Carbon Steel Pipe To ASTM A 333 Gr 1 pipes Applications
Carbon Steel Pipe To ASTM A 333 Gr 1 pipes, as said above, is used in a number of industries and has a number of commercial applications in different industrial sectors. It can be used as structural piping equipment in construction or it can be used for transmission of oil, natural gas, petroleum, and water or as platforms on offshore rigs during drilling. It is a primary constituent in products like precision tubes, LPG cylinders, and others and it has a number of applications. It is suitable for welding, flanging, and other forming operations. Carbon Steel Pipe To ASTM A 333 Gr 1 pipes is notable for its flexibility and strength. This is the prime reason behind its growing popularity. It is fit for a broad range of services and therefore, it has been able to expand its scope of usage in different industries.
Certification:
Low temperature service is permitted by ASTM A333 (ASME S/A-333) Pipe grades. This specification covers average range seamless walled pipe.
Scope: This specification covers average wall welded and seamless carbon and alloy steel pipe intended for use at lower temperatures. Ferritic steel is included in various grades. Under this specification, various product sizes may be unavailable due to heavier wall thickness, which has a negative effect on low-temperature impact properties.
Material & Manufacture: The pipe is made by the seamless or welding process with the addition of no filler metal in the welding operation.
Grades: Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10, Grade 11
Size Range:
Outer Dimensions: 19.05mm-457mm
Wall Thickness:2.0mm-60mm
Lengths: Lengths required shall be specified on order.
If no definite length is required then the following practice applies:
Single Random — 17′ ~ 24′ lengths
Double Random — 36′ ~ 44′ lengths
Chemical Composition(%) :
GRADE | C | MN | SI | P | S | CR | NI | MO | CU | V | CO | NB | AL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grade 1 | 0.30 max | 0.40-1.06 | / | 0.025 max | 0.025 max | / | / | / | / | / | / | / | / |
Grade 3 | 0.19 max | 0.31-0.64 | 0.18-0.37 | 0.025 max | 0.025 max | / | 3.18-3.82 | / | / | / | / | / | / |
Grade 4 | 0.12 max | 0.50-1.05 | 0.08-0.37 | 0.025 max | 0.025 max | 0.44-1.01 | 0.47-0.98 | / | / | 0.40-0.75 | / | / | 0.04-0.30 |
Grade 6 | 0.30 max | 0.29-1.06 | 0.10 min | 0.025 max | 0.025 max | / | / | / | / | / | / | / | / |
Grade 7 | 0.19 max | 0.90 max | 0.13-0.32 | 0.025 max | 0.025 max | / | 2.03-2.57 | / | / | / | / | / | / |
Grade 8 | 0.13 max | 0.90 max | 0.13-0.32 | 0.025 max | 0.025 max | / | 8.40-9.60 | / | / | / | / | / | / |
Grade 9 | 0.20 max | 0.40-1.06 | / | 0.025 max | 0.025 max | / | 1.60-2.24 | / | 0.75-1.25 | / | / | / | / |
Grade 10 | 0.20 max | 1.15-1.50 | 0.10-0.35 | 0.035 max | 0.015 max | 0.15 max | 0.25 max | 0.05 max | 0.15 max | 0.12 max | / | 0.05 max | 0.06 max |
Grade 11 | 0.10 max | 0.60 max | 0.35 max | 0.025 max | 0.025 max | 0.50 max | 35.0-37.0 | 0.50 max | / | / | 0.50 max | / | / |
Heat Treatment Requirements: All seamless and welded pipe shall be treated to control their
Minimum Impact Test Temperature
Grade 1 -50 (F) -45 (C)
Grade 6 -50 (F) -45 (C)
Heat Treatment:
Grades 1 and 6 shall be heat treated to control their microstructure.
Surface treatment: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.
ASTM A333 GRADE 1 CHEMICAL COMPOSITIONS(%)
STEEL GRADE | C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V |
---|---|---|---|---|---|---|---|---|---|---|
ASTM A333 GRADE.1 | ≤0.30 | / | 0.40-1.06 | ≤0.025 | ≤0.025 | / | / | / | / | / |
ASTM A333 GRADE 1 MECHANICAL PROPERTIES
GRADE | YIELD STRENGTH (MPA) | TENSILE STRENGTH (MPA) | ELONGATION (%) |
---|---|---|---|
Grade.1 | ≥205 | ≥380 | 35 |
STRIKE TEMPERATURE CONDITION
GRADE | The lowest temperature for strike test | |
---|---|---|
℉ | ℃ | |
GR.1 | -50 | -45 |
